Descripción

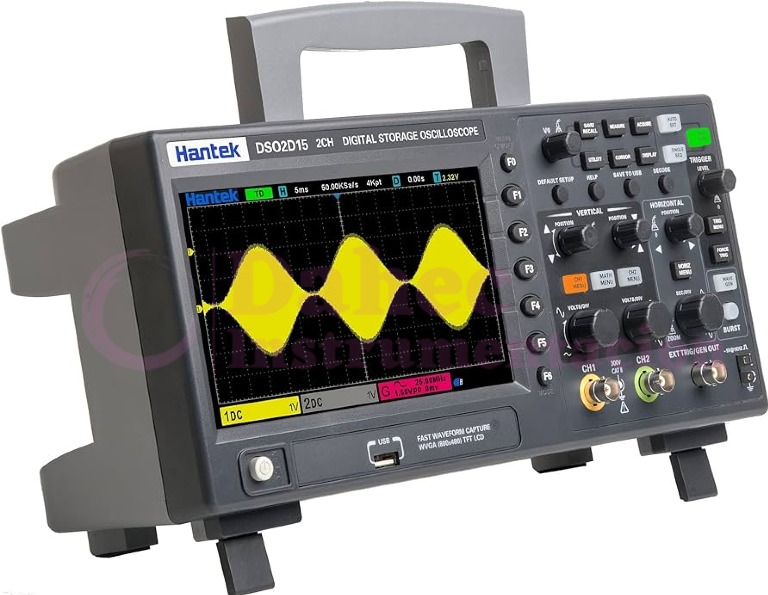

Osciloscopio 2 Canales KG-IC077 DSO2C15 150Mhz, Almacenamiento, Digital, Hantek KG-IC077
Datos Técnicos de Osciloscopio 2 Canales KG-IC077
| Model | KG-DSO2D15 | KG-DSO2D10 | KG-DSO2C15 | KG-DSO2C10 | |
| Bandwidth | 150MHz | 100MHz | 150MHz | 100MHz | |
| Oscilloscope channels | 2CH | 2CH | 2CH | 2CH | |
| Waveform generator | 1CH | 1CH | – | – | |
| Oscilloscope | |||||
| Sample rate | 1GSa/s (single channel) 500MSa/s (two channels) | ||||
| Acquisition | |||||
| Normal | Sample data | ||||
| Peak-to-peak value | Display high frequency and random burr | ||||
| Average | Average waveform, times: 4, 8, 16, 32, 64, 128 | ||||
| High resolution | Up to 12bit | ||||
| Input | |||||
| Input coupling | DC, AC, GND | ||||
| Input impedance | 1MΩ±2% ‖13pF±3pF | ||||
| Probe attenuation factor | 1X, 10X, 100X, 1000X | ||||
| Voltage rating | 300V CAT II | ||||
| Maximum input voltage | 300VRMS (10X) | ||||
| Horizontal | |||||
| Waveform interpolation | (without x)/x | ||||
| Maximum record length | Single channel maximum 8M | ||||
| Two channels maximum 4M | |||||
| Horizontal scale range | 2ns/div~100s/div 1, 2, 5 step by step | ||||
| Time base mode | YT, XY, Roll | ||||
| Zero offset | ±0.5 div×minimum time base gear | ||||
| Sample Rate and Delay Time Accuracy | ±25ppm | ||||
| Delta Time Measurement Accuracy (Full Bandwidth)Sample Rate and Delay Time Accuracy | single-shot, Normal mode ±（1 sample interval+100ppm×reading+0.6ns） | ||||
| ＞16 times averages ±（1 sample interval+100ppm×reading+0.4ns） | |||||
| Sample interval=sec/div÷200 | |||||
